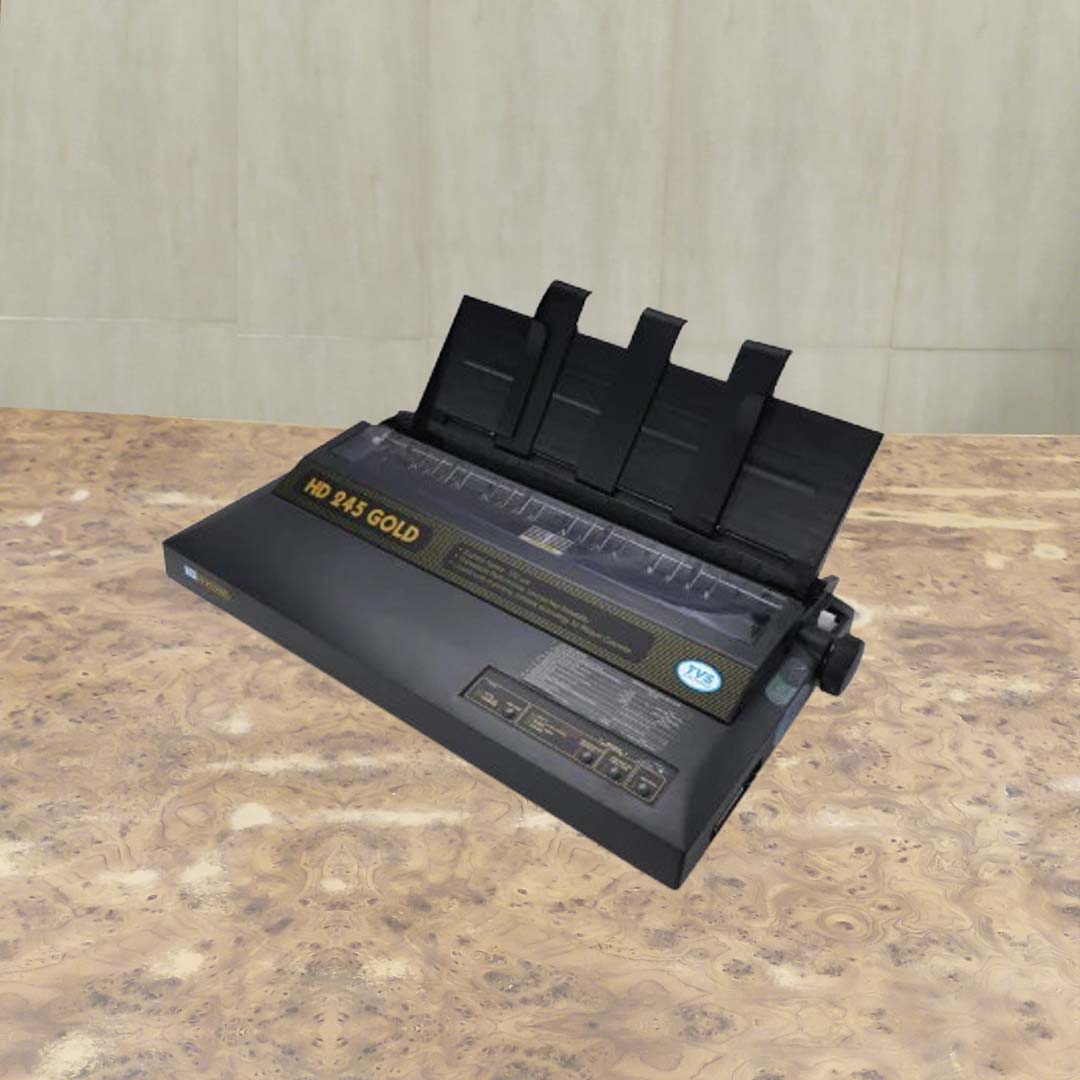

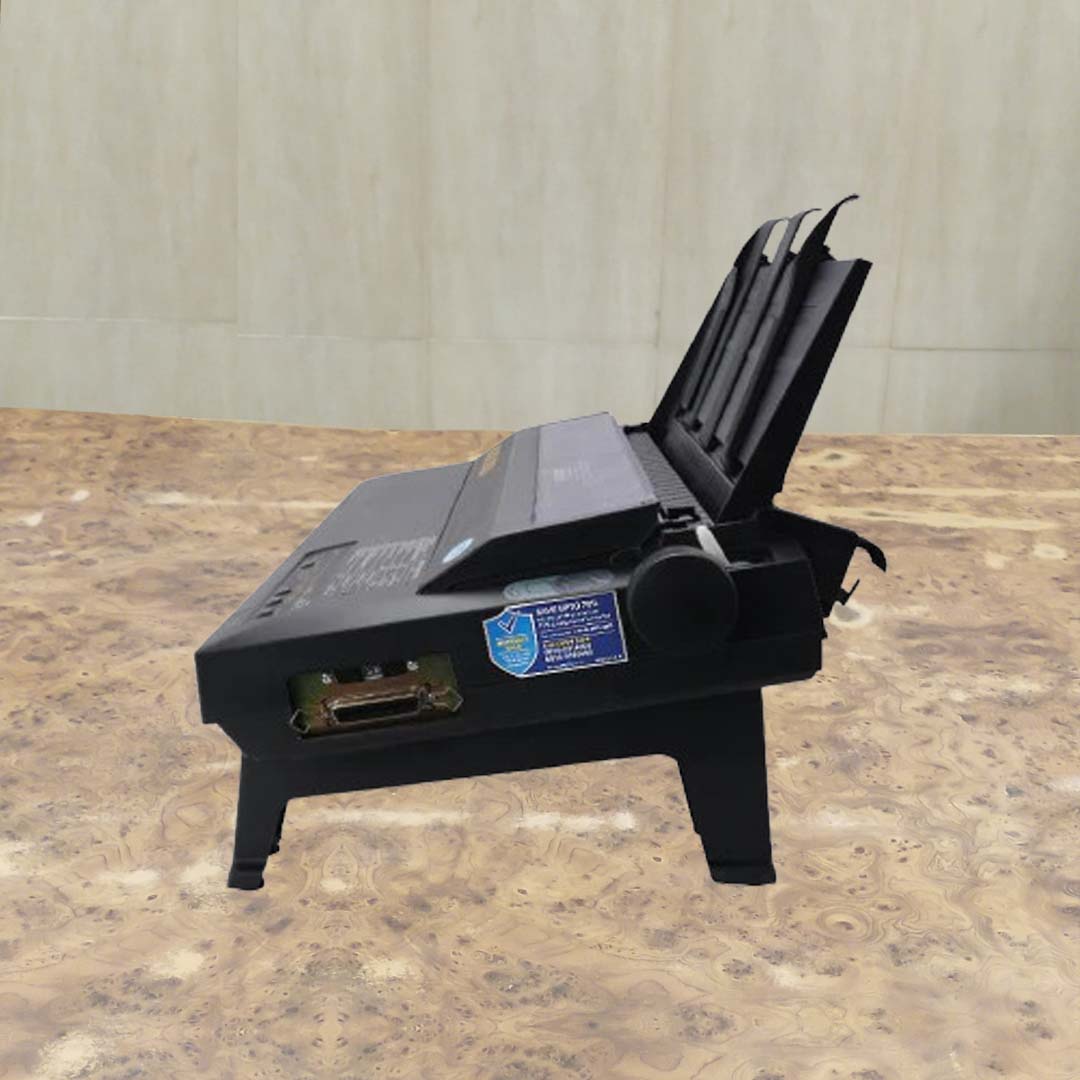

TVS HD 245 Gold 9W|136Column Dot Matrix Printer

Dot Matrix Printer

Availablity In stock

MRP 27495/-

Discover unparalleled durability with the HD 245 Gold - a Heavy-duty wide carriage Dot Matrix Printer. Designed for long duration printing applications, it comes with 15,000 power-on hours and a print head that supports up to 200 million characters. Its throughput speed provides versatile connectivity and reliable performance for documents such as Excise Invoices, BL documents, Courier PODs and statements.

FEATURES

Code capability 1-3
Print head life: 200 million characters at 33% print density in 25% duty cycle
15000 power-on hours - higher reliability
long lasting 10 million characters ink bank ribbon for low maintenance costs
Throughput speed of 364 pages per hour

SPECIFICATIONS
FEATURES

Print Method : Serial Impact Dot Matrix
Printing Speed : Bi Directional Logic Seeking
Print Head Type : 9 Wire
Print Width : 136 Column
Print Head Life : 200 million characters
Print Speed :
Print Speed : 10 – 12
Super Speed Draft cps : 475 – 571
High Speed Draft cps : 440 – 552
Draft cps : 368 – 442
Near Letter quality cps : 90 – 110
Resident Printer Fonts :
High Speed Draft : Standard 10, 12, 15, 17 & 20 cpi
Draft : Standard 10, 12, 15, 17 and 20 cpi
Near Letter Quality : Roman, Sans Serif, Script
Resident bar code : Code 3 of 9, EAN13, EAN8, UPCA, Interleave 2 of 5
Paper path standard : Top, Rear and Bottom
Continuous Tractor feed standard : Convertible push & Pull
Continuous form width : 4 – 16″
Continuous form width : 4 – 16″
Cut sheets width : 7.2 – 16.1″
Paper thickness max : Tractor feed 0.52 mm, Friction feed 0.52 mm
Copy capability : 1+5 with carbon max.page thickness of 0.52 mm
Type : Patented TVS ribbon cassette with user replaceable ink bank
Color : Jet Black
Ribbon Life : 40 Million characters with 3 additional inkbanks
Cassette Refill mode : Through Inkbank
Inkbank life : 10 Million characters
Input Buffer Kilo bytes : 100 KB
Reliability MTBF Power on Hours : 15,000 POH
Acoustics Noise level : 49 dBA
Emulation : Epson ESC/P, IBM Proprinter
Interface : As per the printer part number
Drivers : Windows 9X, NT 4.0, Me, 2000, 2003, XP, Vista, Windows 7, LINUX
Electronic Guide : HTML Based
Operating voltage : 150 – 270V AC
Mains frequency : 47 – 63 Hz
Power Standby : 12W
Temperature : +5 to + 45ºC
Relative Humidity : 10% to 80%
Size W*D*H mm : 608*147*379
Weight : 7.5 kg
Best Suited for Printing : Invoices, Delivery Challans, Shipping Documents, Statements, Ledgers and Accounts, Printing Reports, Documents, Share Certificates, Policy Documents

Code capability 1-3
Print head life: 200 million characters at 33% print density in 25% duty cycle
15000 power-on hours - higher reliability
long lasting 10 million characters ink bank ribbon for low maintenance costs
Throughput speed of 364 pages per hour
